Nirit

Overview

Nirit is a desktop environment for GNU/Linux distributions focused on Tiling Windows Management, minimal installed packages and maximum customization

License

This project is licensed under a GNU General Public License v3.0.

If you want to know about this license, click here

Stack

Tech	Description	Used for
	Unix shell scripting language for command line tasks	Nirit Installer Script
	High-level programming language for versatile, readable code.	Qtile Settings Script

Compatibility

Nirit currently works on the following GNU/Linux distributions:

• Debian GNU/Linux 12 (bookworm)

Getting Started

Note

First of All, I Recommend to do a clean Installation to avoid conflicts with packages

Using Debian

Note

I recommend that in the installation, in the part where you can install a desktop environment, you only choose to install the standard system utilities

Tip

After reboot the system, enter as root to install sudo. To install the program sudo do:

apt install sudo
gpasswd -a <your_user> sudo
exit

Use

Here will explain to you how to use this project

Installation

First, to use the Nirit Installer, you need to install git

Distributions

Here will show how to install the dependencies in the different distros that support Nirit

Using Debian

sudo apt install git

Clone Repository

Later, you will clone this repository:

git clone https://github.com/sh4dow18/nirit.git

Now, go to "nirit" folder:

cd nirit/

Finally, to execute the installer, put:

sudo bash nirit-installer.sh

Screenshots

Installer

Here will show screenshots of the Nirit Installer Script working

Help

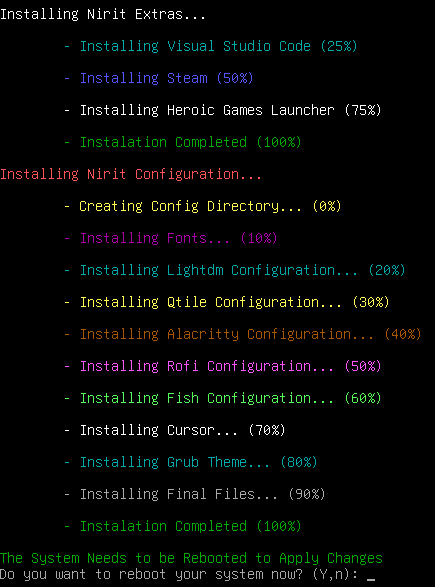

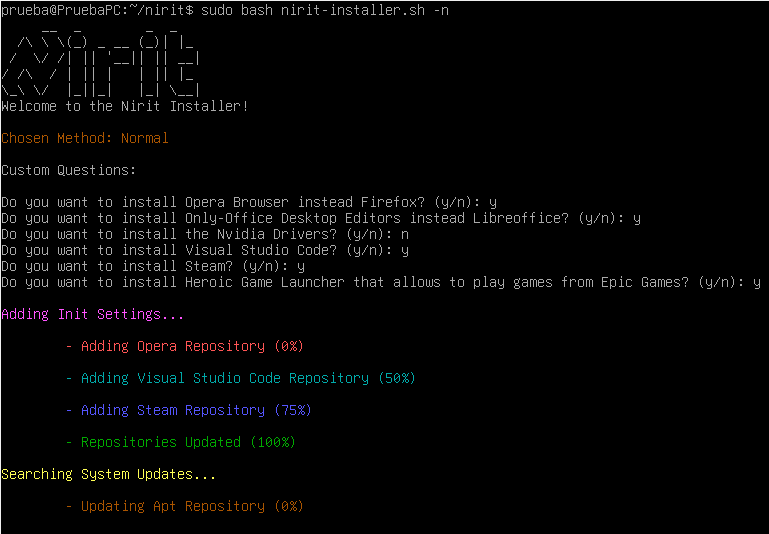

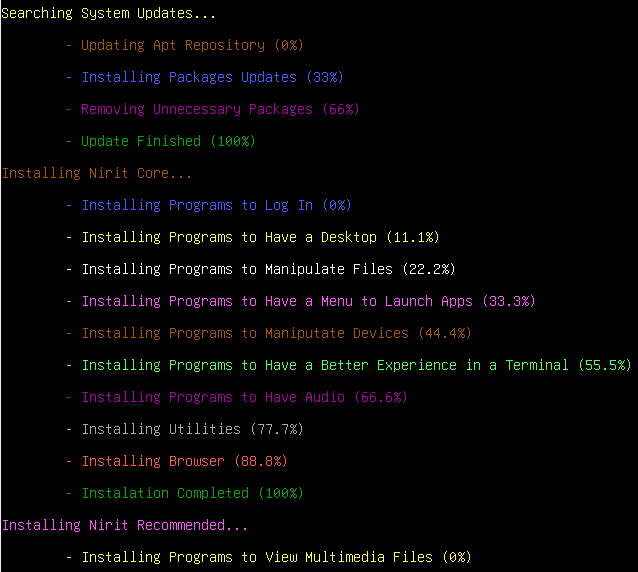

Installing (Normal Mode)

Installed

Here will show screenshots when Nirit was successfully installed

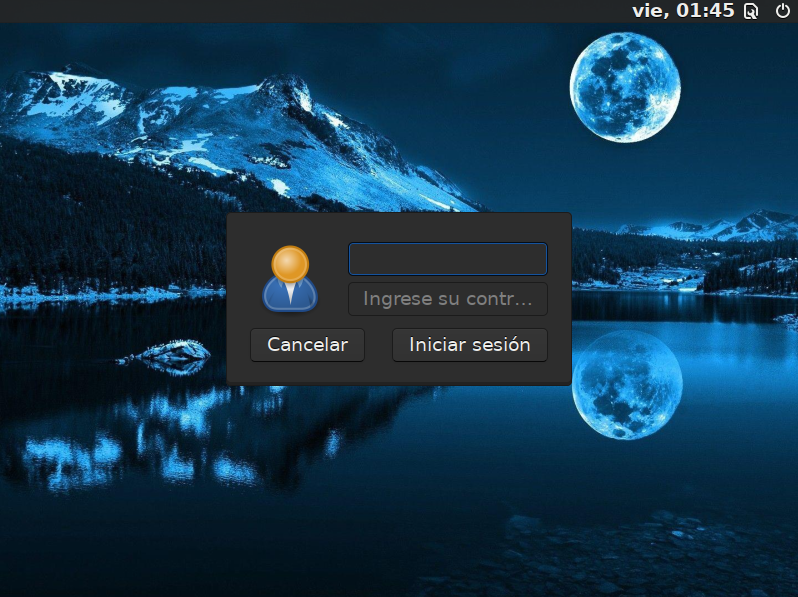

Login

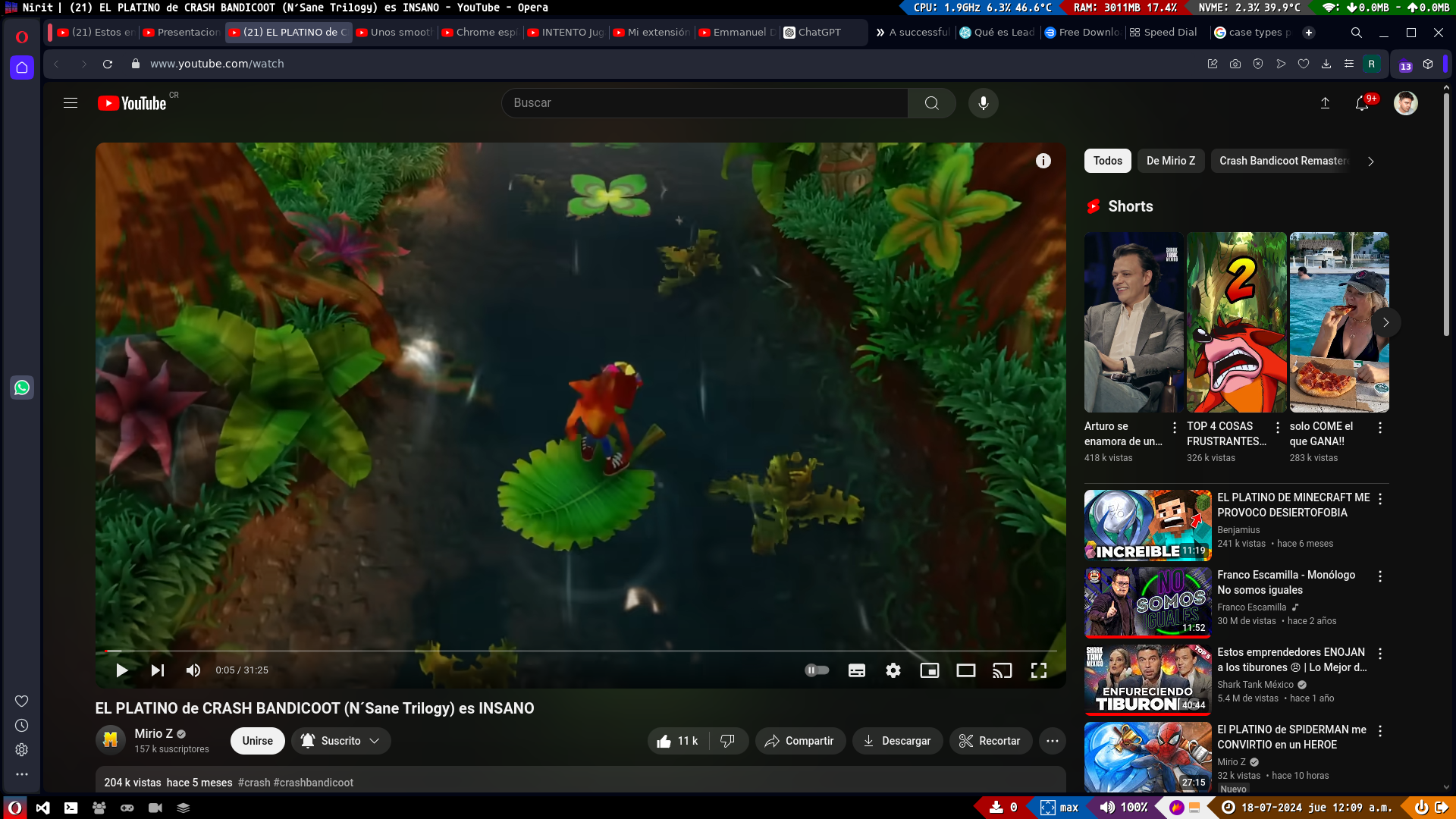

Browsers

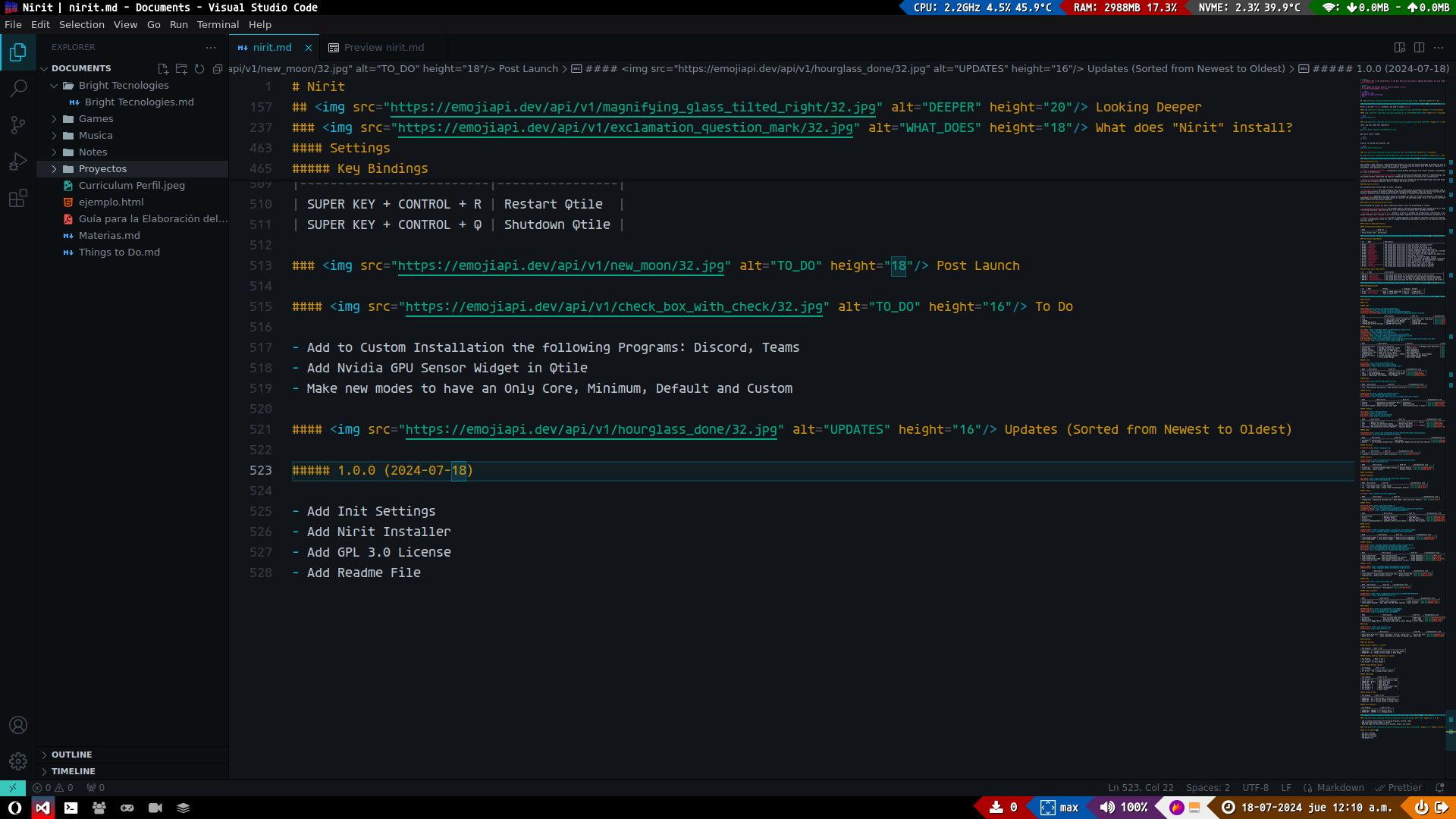

IDEs

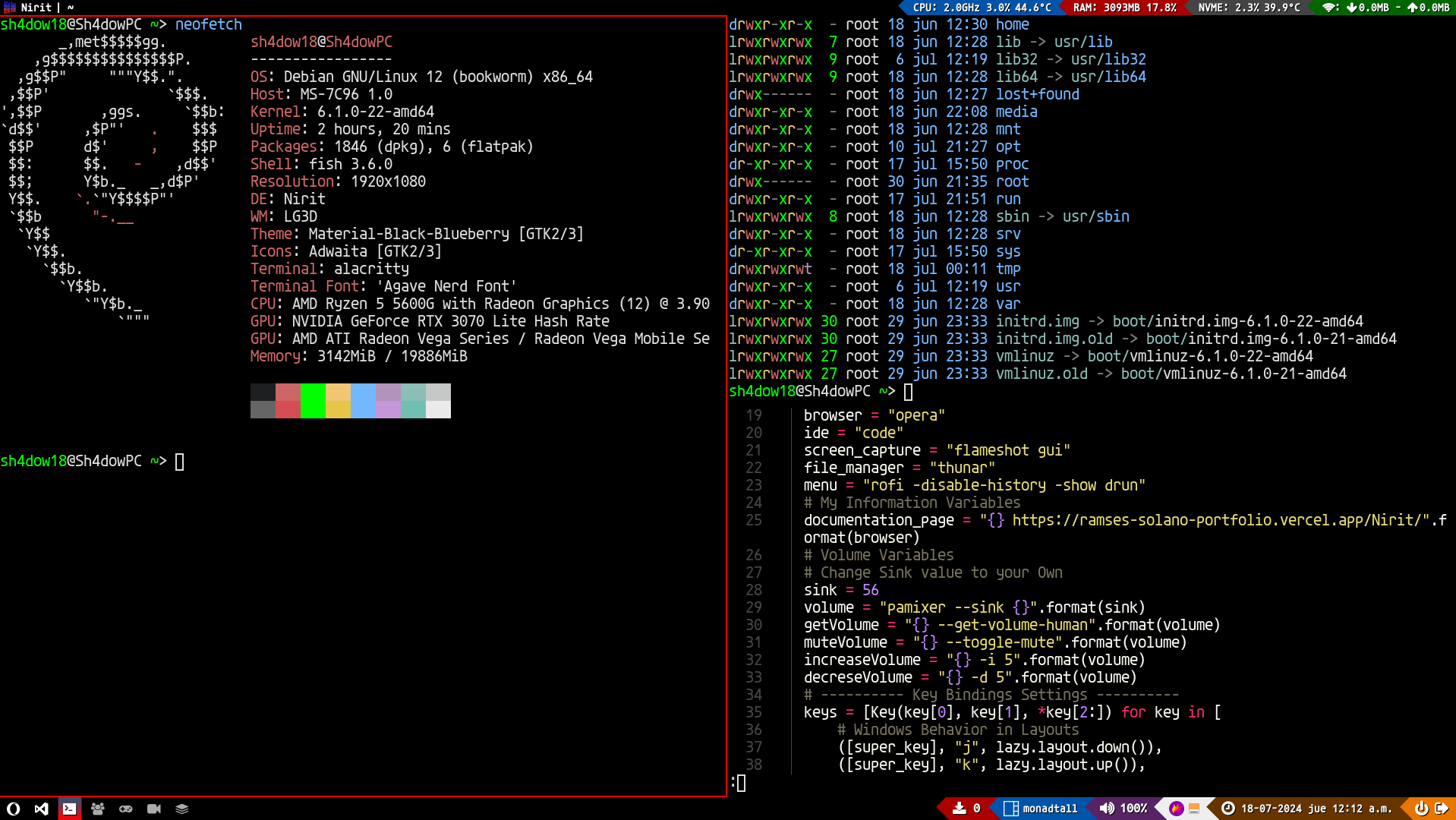

Terminal

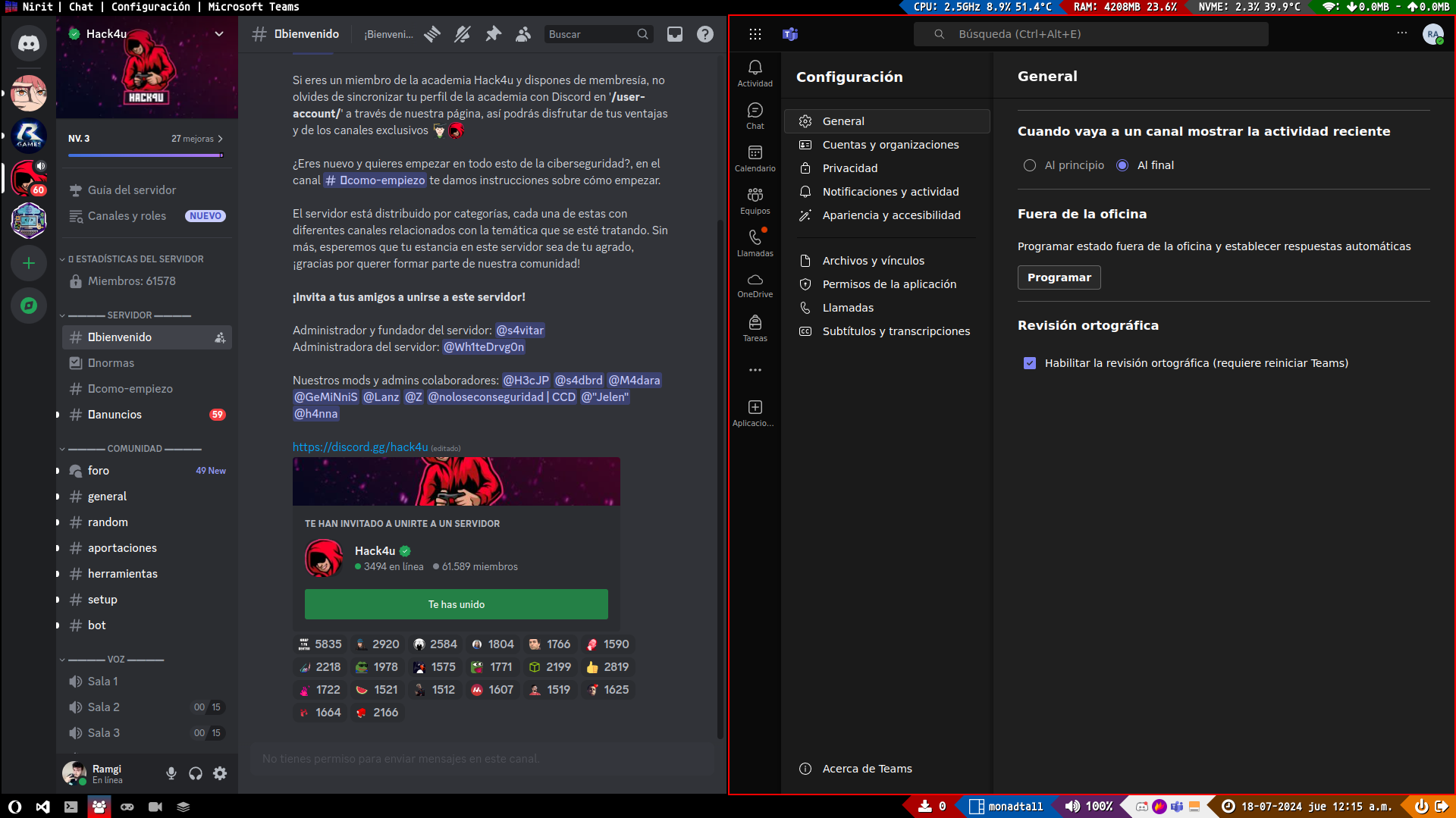

Calls

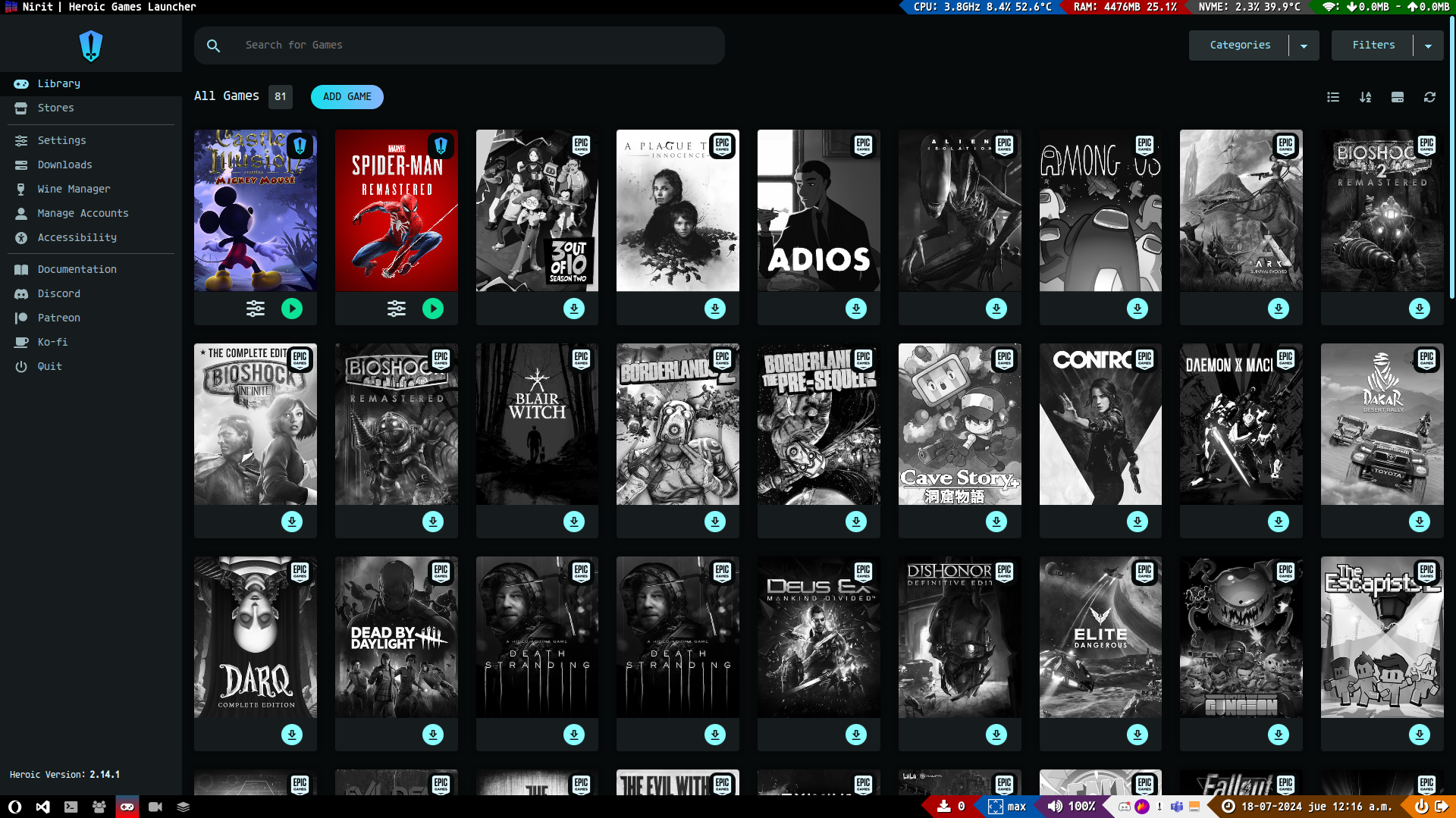

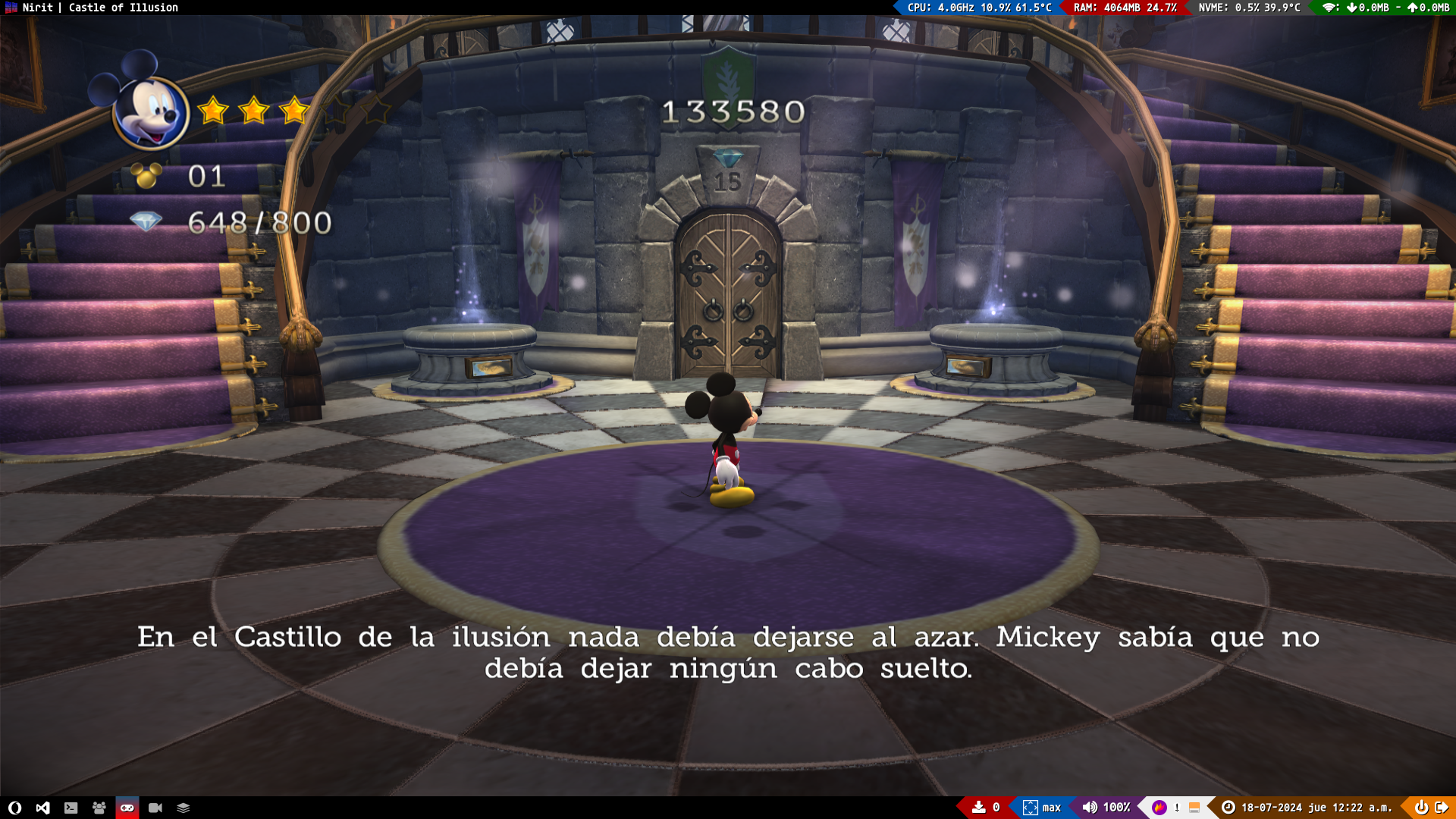

Games

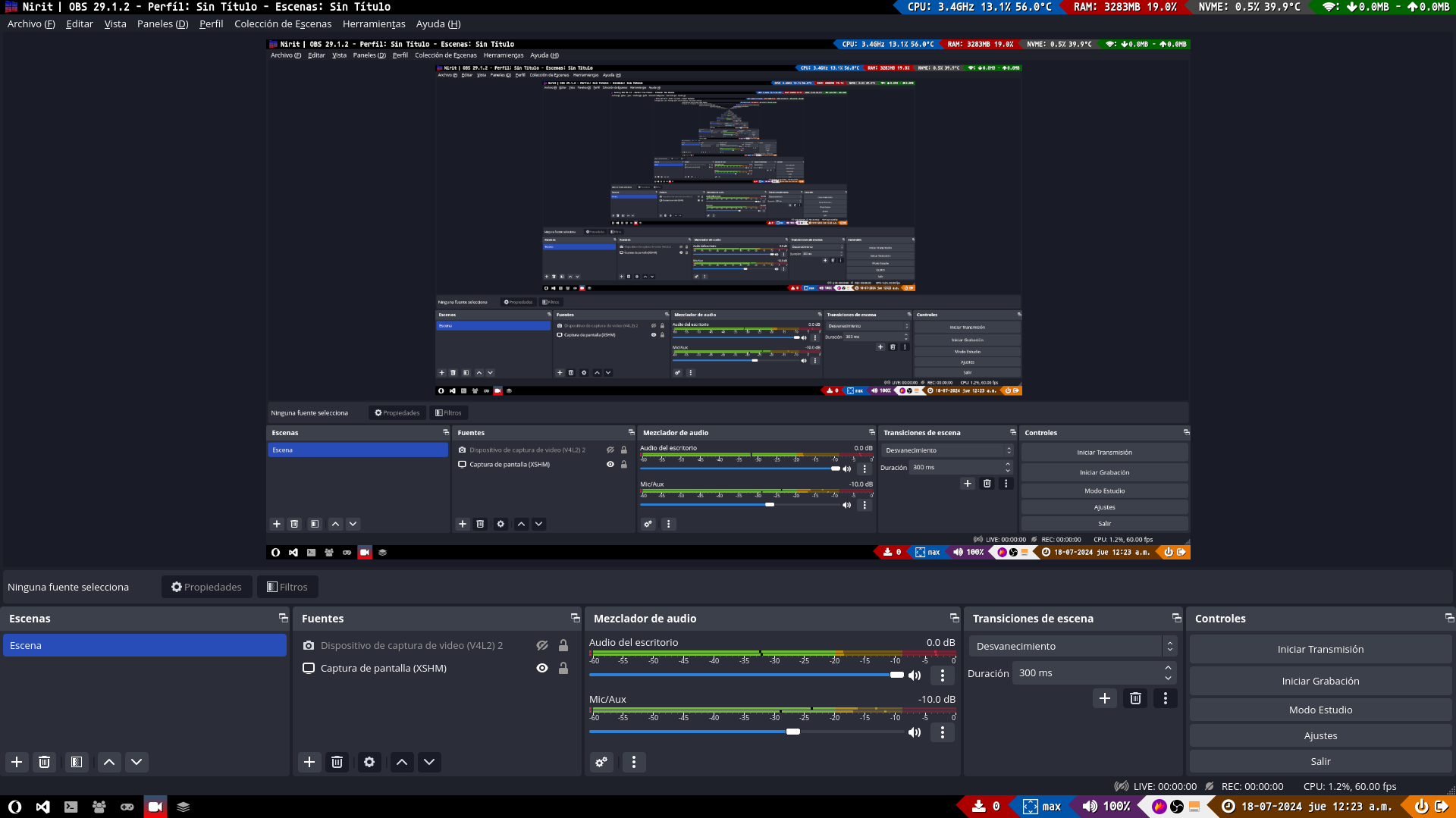

Video

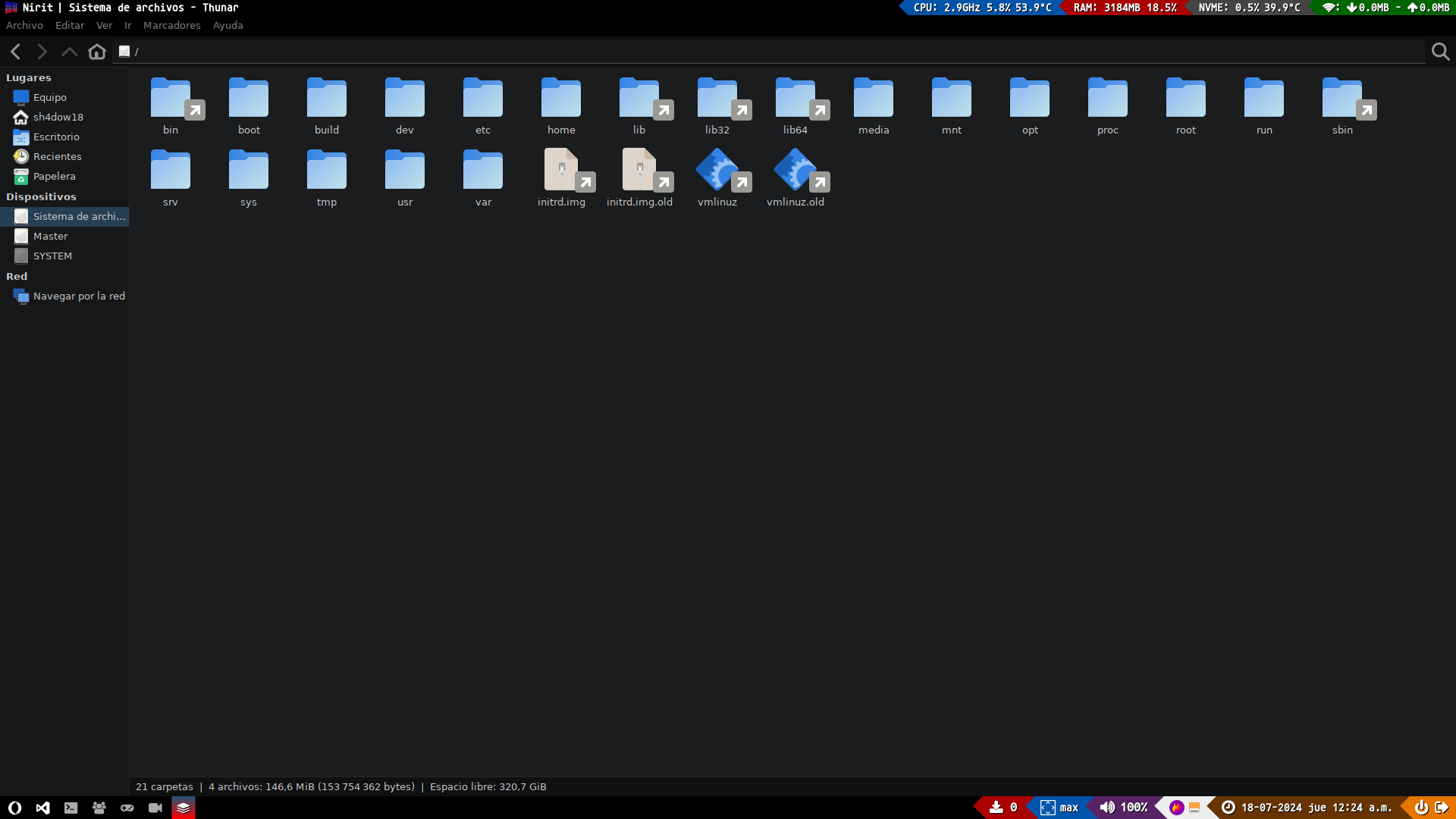

Misc

Looking Deeper

Do you Want to Know More? Keep Reading :D

Vision

Here the Project Vision will be explained, which shows why it was created

Note

This Vision was created using my knowledge in Scrum

Problem Definition

The problem is that creating a custom desktop environment for Linux by installing package by package can take hours, up to 10 hours. In the case of a system failure or wanting to clean up by reinstalling the system, even more time is required to redo the custom desktop environment. This generates several inconveniences, including:

• Loss of time and efficiency: Configuring a custom desktop environment from scratch consumes a considerable amount of time, resulting in a loss of productivity.

• Difficulty in replicating the environment: When reinstalling the operating system or troubleshooting, replicating the exact desktop environment becomes complicated and requires remembering and manually reconfiguring all customizations.

• Lack of automation: Not having an automated process for configuring the environment means that each adjustment and package must be installed and configured manually, which is tedious and prone to errors.

Who Does It Affect?

This problem affects several types of users, including:

• Individual users: Users who configure their own custom desktop environments are the most affected. They experience a considerable loss of time and effort in manually installing and configuring each package, which can lead to frustration and disruption in their workflow, especially when facing system failures or deciding to reinstall the operating system.

• Developers: Developers who need a specific environment for their work suffer from having to spend hours configuring their development environment each time they install or reinstall the operating system. This is not only an inefficient use of time but can also affect productivity and project deadlines.

Impact of Not Undertaking the Project

Not developing the project can have a significant impact, which can be mentioned as follows:

• Frustration and demotivation: The constant need to replicate configurations after system failures or reinstalls can result in a frustrating experience, demotivating users from continuing to customize their desktop environment.

• Frequent interruptions in workflow: Without a solution to automate the configuration, interruptions in workflow due to operating system reinstalls will continue to be a recurring problem, negatively affecting the continuity and quality of users' work.

• Risk of losing customizations: In case of system failures or the need for reinstalls, users will continue to face the risk of losing all their customizations, which can lead to a negative experience and greater distrust in the stability and usability of the Linux operating system.

Technical Required Resources

Here will show what technical resources were necessary to create the project, ignoring the stack

Integrated Development Environments

Name	Used for
	Everything

Requirements

Here will show the Project Requirements

Note

These Requirements were created using my knowledge in Scrum

Functional Requirements

Id	Name	Description
RF-01	Login	The system must allow users to log into their existing accounts
RF-02	Desktop	The system must allow users to have a desktop to work on
RF-03	Files	The system must allow users to view and work with system files
RF-04	Menus	The system must allow users to easily navigate between applications
RF-05	Devices	The system must allow users to connect removable devices and view their information
RF-06	Terminal	The system must allow users to work comfortably through a terminal
RF-07	Audio	The system must allow users to listen to audio from the computer and adjust its volume
RF-08	Utilities	The system must allow users to have basic utilities
RF-09	Browsers	The system must allow users to browse the internet through a browser
RF-10	Multimedia	The system must allow users to view or play their multimedia content if desired
RF-11	Office	The system must allow users to work on documents and presentations if desired
RF-12	Drivers	The system must allow users to have video drivers if desired
RF-13	IDEs	The system must allow users to use IDEs to write code if desired
RF-14	Games Launchers	The system must allow users to play video games easily if desired
RF-15	Fonts	The system must allow users to have custom text fonts if desired

Non-Functional Requirements

Id	Name	Description
RNF-01	Usability	The system must ensure it is intuitive and easy to use for users
RNF-02	Security	The system must ensure the protection of data against unauthorized access
RNF-03	Scalability	The system must ensure it can adapt and expand without losing performance
RNF-04	Maintainability	The system must facilitate the task of maintaining and improving the system

Standarts

The mandatory formats to work on this project will be shown here

Note

These Standarts were created using my knowledge in Scrum

Programming Format

Id	Name	Format	Language	Example
ST-01	Variables	Name in UPPER_SNAKE_CASE	English	$LIGHT_BLUE
ST-02	Functions	Name in snake_case	English	progress_status

What does "Nirit" install?

Here will explain what Nirit does on installation, from Nirit Core to custom settings.

Software

First, the software needed to create Nirit

Core

In this part, will explain the Core Programs that allow to Nirit work well

Login

Name	Description	Used For	Documentation Link
xorg	X.Org Graphic Server Package Set	Use Graphic User Interfaces	See Docs
lightdm	Lightweight Screen Manager	Login Screen	See Docs
lightdm-gtk-greeter	LightDM Graphic Interface	LightDM GUI	See Docs
lightdm-gtk-greeter-settings	LightDM GTK+ Settings	LightDM GUI Settings	See Docs

Desktop

Name	Description	Used For	Documentation Link
x11-xserver-utils	X11 Server Utilities	Have Xrandr to Manage Screen Resolution	See Docs
python3-pip	Package Installer for Python	Install Qtile	See Docs
python3-xcffib	XCB Python Implementation	Qtile Dependency	See Docs
python3-cairocffi	Python Cairo's CFFI Interface	Qtile Dependency	See Docs
libpangocairo-1.0-0	Pango with Cairo Library	Qtile Dependency	See Docs
python3-psutil	Process and System Utils in Python	CPU, Memory and Net Qtile Widgets	See Docs
apt-show-versions	Show APT Packages Versions	Check Updates Qtile Widgets	See Docs
qtile	Tiling Window Manager	Main Window Manager	See Docs

Files

Name	Description	Used For	Documentation Link
zip	File Compressor	Compress files in Zip	See Docs
unzip	Zip File Decompressor	Decompress Zip Files	See Docs
thunar	Lightweight File Manager	File Manager	See Docs

Menus

Name	Description	Used For	Documentation Link
rofi	App Launcher and Selector	App Launcher and Selector	See Docs

Devices

Name	Description	Used For	Documentation Link
udiskie	Automounter for Removable Media	Automounter	See Docs
ntfs-3g	Read/Write NTFS Driver	Read NTFS Disks	See Docs
policykit-1-gnome	Gnome PolicyKit Auth Agent	Allow Mounting Disks in Thunar	See Docs

Terminal

Name	Description	Used For	Documentation Link
exa	Modern File Lister	CLI File Lister as ls (alias)	See Docs
fish	Frendly and Interactive Shell	Default User Shell	See Docs
bat	Cat Clone with Sintax Highlighting	CLI File Reader as cat (alias)	See Docs
alacritty	GPU Accelerated Terminal Emulator	Terminal Emulator	See Docs

Audio

Name	Description	Used For	Documentation Link
pulseaudio	Sound Server	Have Audio	See Docs
pamixer	CLI PulseAudio Volume Driver	Volume Qtile Widget and Set-Sink Fish Function	See Docs

Utilities

Name	Description	Used For	Documentation Link
flameshot	Screenshot Tool	Make Screenshots	See Docs

Browsers

Name	Description	Used For	Documentation Link
firefox-esr	Firefox Extended Support Version	Default Browser	See Docs
opera-stable	Opera Browser	Optional Browser	See Docs

Recommended

Also exists the recommended programs that Nirit can install, but these programs only would be installed in Normal Mode

Multimedia

Name	Description	Used For	Documentation Link
vlc	Multimedia Player	Video Player	See Docs
feh	Fast Image Viewer	Image Viewer and Wallpaper Selector	See Docs

Themes

Name	Description	Used For	Documentation Link
lxappearance	Appearance Settings Tool	Main Theme, Icons and Cursor Selector	See Docs

Office

Name	Description	Used For	Documentation Link
qalculate-gtk	Advance Calculator	Calculator	See Docs
evince	Document Viewer	View PDF Files	See Docs
libreoffice	Free Office Suite	Default Office Suite	See Docs
onlyoffice-desktop-editors	OnlyOffice Office Suite Editor	Optional Office Suite	See Docs

Custom

Finally, here are custom programs that could be install optionally in Normal Mode

Important

These programs will only be installed if the user so wishes

Kernel

Name	Description	Used For	Documentation Link
linux-headers-amd64	Linux Kernel Headers	Nvidia Drivers Dependency	See Docs
linux-image-amd64	Linux Kernel Images	Nvidia Drivers Dependency	See Docs

Graphics

Name	Description	Used For	Documentation Link
mesa-vulkan-drivers	Mesa Vulkan Drivers	Steam Dependency	See Docs
libglx-mesa0:i386	Mesa GLX Implementation (32-Bit)	Steam Dependency	See Docs
mesa-vulkan-drivers:i386	Mesa Vulkan Drivers (32-bit)	Steam Dependency	See Docs
libgl1-mesa-dri:i386	Mesa OpenGL Implementation (32-bit)	Steam Dependency	See Docs

Drivers

Name	Description	Used For	Documentation Link
nvidia-detect	Nvidia Hardware Detection Tool	Detect Nvidia GPU	See Docs
nvidia-driver	Nvidia Graphics Drivers	Nvidia Drivers	See Docs

IDEs

Name	Description	Used For	Documentation Link
code	Source Code Editor	Programming	See Docs

Games Launchers

Name	Description	Used For	Documentation Link
steam-installer	Steam Client Installer	Steam Installer	See Docs
heroic-games-launcher	Epic Games and GOG Games Launcher	Games Launcher	See Docs

Themes

Name	Description	Used For	Documentation Link
Darkmatter	Dark polished GRUB theme	GRUB Theme	See Docs
Adwaita-dark	Gnome Dark Mode Theme	Main Theme	See Docs
ComixCursors-Opaque-White	X11 mouse theme with a comics feeling	Cursor Theme	See Docs

Fonts

Name	Description	Used For	Documentation Link
Ubuntu Mono Nerd Font	Small, monospace, outline, simple font	Qtile Bar Font	See Docs
Agave Nerd Font	Latin characters as a base for design font	Main Font	See Docs

Settings

In this part, will explain the custom settings that Nirit install

Key Bindings

Note

These Key Bindings Configurations are for Qtile

Windows Behavior in Layouts

Key Binging	What it do?
SUPER KEY + J	Change Current Window to Previous Window
SUPER KEY + K	Change Current Window to Next Window

Windows Behavior Regardless of Layouts

Key Binging	What it do?
ALT GR KEY + W	Kill Window

Change Between Layouts

Key Binging	What it do?
ALT GR KEY + TAB	Change Between Layouts

Spawn Apps

Key Binging	What it do?
ALT GR KEY + F1	Spawn Documentation Page
SUPER KEY + Return	Spawn Alacritty
SUPER KEY + M	Spawn Rofi Menu
ALT GR KEY + F	Spawn Browser
ALT GR KEY + C	Spawn Visual Studio Code
ALT GR KEY + S	Make a Screenshot
ALT GR KEY + T	Spawn Thunar

Manage Volume

Key Binging	What it do?
SUPER KEY + F9	Mute Volume in Actual Sink
SUPER KEY + F10	Decrese Volume in Actual Sink
SUPER KEY + F11	Increse Volume in Actual Sink

Qtile Behavior

Key Binging	What it do?
SUPER KEY + CONTROL + R	Restart Qtile
SUPER KEY + CONTROL + Q	Shutdown Qtile

Aliases

Important

These Aliases are CLI only, and only work with fish shell

Name	Execute	What it does?
ls	exa --group-directories-first	Shows the System Files Prettier and directories first
cat	batcat	Shows the file prettier
tree	exa -T	Shows the system files as a Tree
update-system	sudo apt update && sudo apt upgrade -y && sudo apt autoremove	Updates the System Faster
install-program	sudo apt install	Installs a Program
poweroff-pc	systemctl poweroff	Shutdown the System
restart-pc	systemctl reboot	Reboot the System

Functions

Important

These Functions are CLI only, and only work with fish shell

Name	What it does?	Use
set-wallpaper	Set a Wallpaper for Qtile	set-wallpaper "Downloads/Mega Wallpaper.png"
set-sink	Change the Actual Sink for Volumen Qtile Widget	set-sink 3
uninstall-program	Uninstall a Program and it configuration	uninstall-program firefox-esr
fix-opera	Fix Opera's Video Codecs with updated "libffmpeg.so"	fix-opera

Post Launch

Here the planned Post Launched will be shown

To Do

• Add to Custom Installation the following Programs: Discord, Teams
• Add Nvidia GPU Sensor Widget in Qtile
• Make new modes to have an Only Core, Minimum, Default and Custom

Updates (Sorted from Newest to Oldest)

1.0.0 (2024-07-19)

• Add Init Settings
• Add Nirit Installer
• Add GPL 3.0 License
• Add Readme File
• Add Nirit Documentation Page
